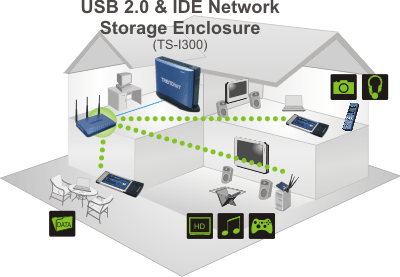

The USB 2.0 IDE Network Storage Enclosure is perfect for adding storage to your network. It includes a Web based utility for simple
configuration and nagement.
| Features |
- Built-in one 10/100Mbps Auto-MDIX Fast Ethernet LAN port
- Embedded one 3.5” IDE Hard Drive bay (HD not included)
- Built-in two USB 2.0 port for additional storage devices
- Support two modes: Open mode and Account Mode
- Provides FTP Server for remote access
- High security support with IP address filtering to ALLOW
or DENY access
- Support USB storage devices such as hard-disk, flash disk
and CD-ROM
- Schedule downloads with FTP or HTTP without turning on
the PC
- Provides email notification service when HD is full, critical
error or modification information
- Support real time clock (RTC) and UPnP for Windows XP
- Compliant with Windows 98(SE)/ME/NT/2000/XP and Linux
SMB Operation System
- Provides Easy-Search utility for different IP domain setting
- 2-Year Warranty
|
|
| Specifications |
| Hardware |
| Standards |
- IEEE 802.3
- IEEE 802.3u
- USB 2.0, 1.1
|
| Microprocessor |
RDC 3210 (150Mhz) |
| Flash ROM / RAM |
4MB Flash / 32MB SDRAM |
| IDE Controller |
ITE IT8211F |
| Interface |
- Power / Reset / Un-mount USB buttons
- 1 x 10/100Mbps Auto-MDIX
RJ-45Port
- 2 x USB 2.0 Type A port (Hard-Disk/Flash-Disk/CD-ROM,
not included)
- 1 x Internal IDE HD Bay (HD not included)
|
| LED |
Power, LAN, IDE HDD, IDE
HDD Full |
| Power Consumption |
36 watts (max) |
| Power |
12V DC, 3A |
| Dimensions |
200 x 154 x 60mm (7.9 x 6 x 2.4in) |
| Weight |
0.7kg (1.5 lb) |
| Temperature |
- Operation: 5°C ~ 40°C (41°F
~ 104°F)
- Storage: -20°C ~ 50°C (-4°F ~ 122°F)
|
| Humidity |
90% ~ 95% (Non-Condensing) |
| Emissions |
CE, FCC |
|
| Software |
| Real Time OS |
Embedded Linux (Kernel version 2.4.25) |
| Network Transfer Protocol |
TCP/IP |
| Network File Protocols |
- Microsoft Networks (CIFS / SMB)
- UNIX (NFS v.3+)
- Internet (HTTP 1.1)
- FTP
|
| Supported HD Type |
ATA/IDE up to ATA/133 |
| File System Type |
- IDE Drive: EXT2
- USB Drive: FAT16 / FAT32 / EXT3 / EXT2 / NTFS
(read only)
|
| Disk Management |
- Hard Disk Failure Detection (S.M.A.R.T)
- Disk Detect/Auto Recovery
- Disk Used Status Management
|
| System Management |
- Web Management (Internet Explorer
5.0 or later)
- System Temperature Monitor
- System Software Upgrade
- Support Network Time Protocol
- Multi0Users Account / Session
Setting
|
| System Monitoring |
- System Log
- E-Mail Alert
- IP Address Filtering (Allow or Deny)
- Account permissions for
directory
|
|
|
| Storage Server Solution |
 |
|
